Our oil filtration plants are used to remove impurities from Transformer, Reactor, Circuit Breaker and Switchgear oil such as moisture, dirt, air and other gases. This is a “Low Temperature and High Vacuum” principle based equipment as per the International Standards 6034 (1989) and its latest revision. We have filtration plants of variable capacities of 600, 2500 & 7500 LPH.

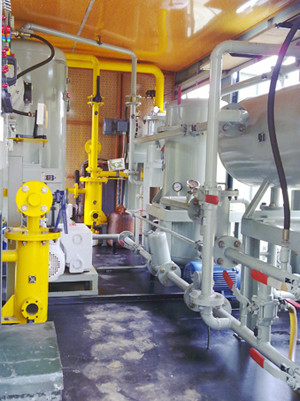

Filtration Plant

                          The plant takes the impure oil into the system through the inlet ball valve and then pumps it through by a positive displacement pump. A magnetic strainer prior to this removes solid particles up to 1mm size and magnetic particles. After heating the oil up to max. 60 °C, it passes through the Paper filters, where particles up to 5 microns are filtered. After that it passes through the Cartridge filters, where particles up to 1 micron are filtered. A specially designed double stage ultra high vacuum chamber removes moisture, air and all the gases with the help of vacuum less than 0.05 Torr. The oil falls by way of gravity over the media inside forming a thin film of oil, exposing a larger surface area. The dissolved moisture and gases are evacuated and the pure oil goes to the transformer through the outlet pump. Our Filtration systems effectively remove all impurities restoring the oils to a pure grade.

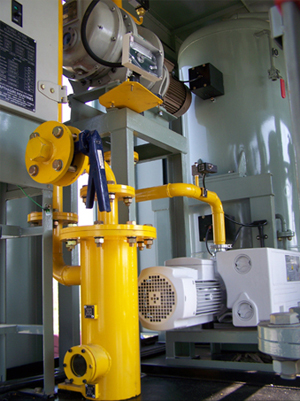

Evacuation System

                         Transformer evacuation system is used to remove impurities from transformer's core and winding. With this system we can improve the INSULATION RESISTANCE ( I. R. Value). There is no need of Oven, even after repairing the Transformer on site. It can improve the I.R. Value of Transformer from 20 MΩ to > 10 GΩ. This system is also used to remove the Gasses & impure particles from Power Transformers at the time of new Installation or Idle Transformers to get in ready/running condition.

This Evacuation System can be used for 500 KVA to > 500 MVA Transformers sufficiently.
